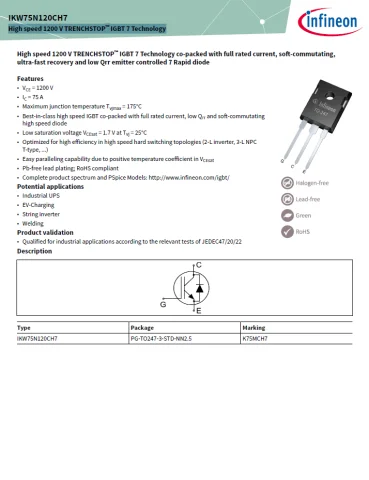

IKW75N120CH7 IGBT viteza mare 1200 V TRENCHSTOP™ IGBT 7

• E_off (Hard Switching) 3.37 mJ
• E_on 5.86 mJ
• I_C (@ 25°) max 92 A
• I_C (@ 100°) max 81 A
• I_Cpuls max 300 A
• I_F max 89 A
• I_Fpuls max 300 kA
• I_rrm 62 A
• Package TO-247-3
• P_tot (@ T_A=25°C) max 549 W
• Q_Gate 535 nC
• Q_rr 6410 nC
• R_Gint 0 Ω
• R_G 8 Ω
• Switching Frequency 16 kHz to 100 kHz
• t_d(off) 527 ns
• t_d(on) 52 ns
• Technology TRENCHSTOP™ IGBT7
• t_f 97 ns
• t_r 36 ns
• V_CE(sat) 2 V
• V_CE max 1200 V
• V_F 2.5 V
• V_GE(th) 5.5 V

1200 V, 75 A IGBT with anti-parallel diode in TO-247 3pin package

Aplicații
• UPS industrial
• Încărcare vehicule electrice
• Invertor de șir
• Sudură
